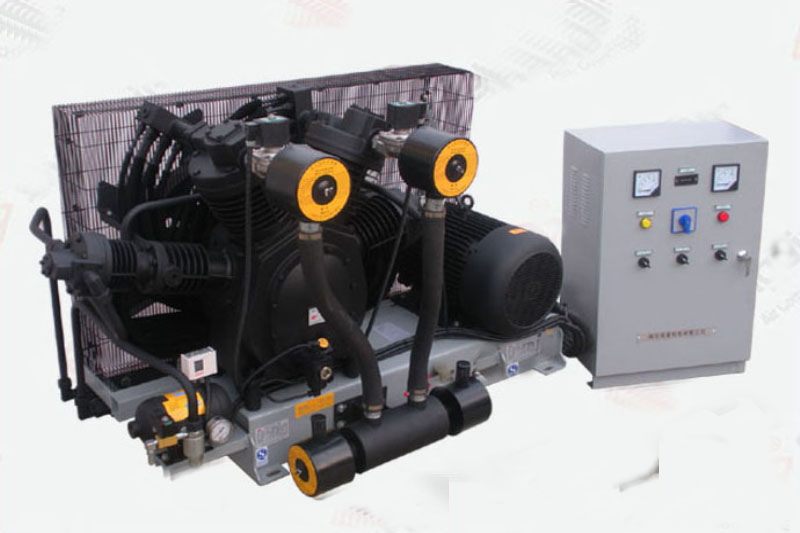

Air Compressors (single unit)
Discharge capacity:?2.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP(22KW)
| series | Model No | ? ? ?Air Flow (Nm3/min) | ? ? ? ? Pressure (Mpa) | Power (KW) | Weight (kg) | ? ? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
| 83SH | 83SH-2230 | 2.0 | 3.0 | 22 | 680 | 2170×1020×1050 |
| 83SH-2240 | 2.0 | 4.0 | 22 | 680 |
?

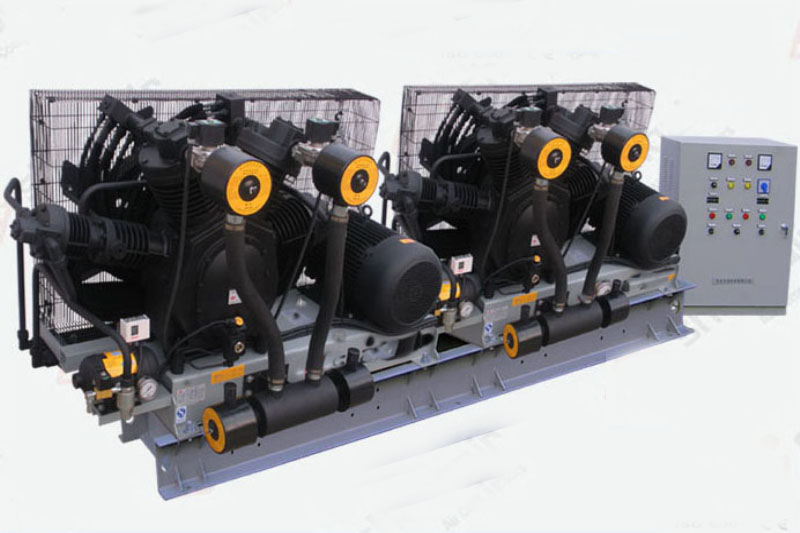

Air Compressor (Double Deck)
Discharge capacity:?4.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP×2(22KW×2)
?
| series | Model No | Air Flow (Nm3/min) | ? ? ? Pressure (Mpa) | Power (KW) | Weight (kg) | ? ? ? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
| 83SH | 2I-83SH-2230 | 4.00 | 3.0 | 22×2 | 1500 | 2100×1050×2250 |
| 2I-83SH-2240 | 4.00 | 4.0 | 22×2 |
?
??

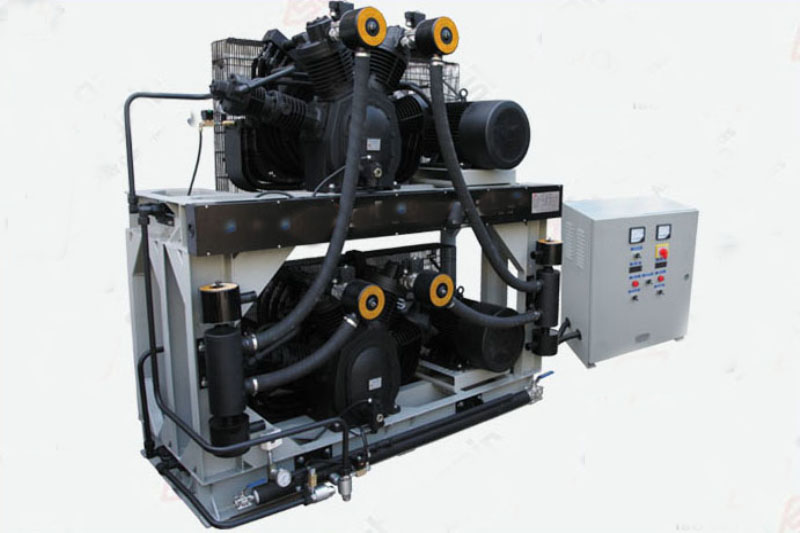

Air Compressor (Double-Engine Set)
Discharge capacity:?4.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP×2 (22KW×2)
| series | Model No | Air Flow (Nm3/min) | ? ? ? ? ?Pressure (Mpa) | Power (KW) | Weight (kg) | ? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
| 83SH | 2-83SH-2230 | 4.00 | 3.0 | 22×2 | 1550 | 3780×1100×1260 |
| 2-83SH-2240 | 4.00 | 4.0 | 22×2 |
?
